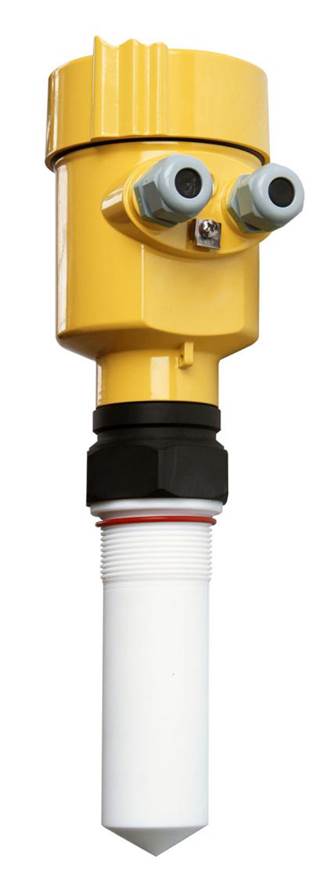

Process Connection

Thread G1½″A/Thread 1½″ NPT/Flange

Antenna Material

Stainless Steel / PTF

The outer shell

The seal between the shell and the shell cover

Silicone rubber

Casing window

Polycarbonate

The ground terminal

Stainless steel

Power Supply

2-wire system

Standard type             (16 to 26) V DCIntrinsically safe            (21.6 to 26.4) V DC  Power dissipation           max 22.5mA / 1W     Allowable ripple   <100Hz                   Uss<lV                                                                                 (100to100K) Hz            Uss

Flameproof

(22.8 to 26.4) V DC, 2-wire system(198 to 242)VAC, 4-wire system/110VAC, 4-wire system

Cable parameters

Cable entrance / plug

1-M20xl.5 cable entrance,1- blind plug

Terminal

Conductor cross section 2.5mm²

Output and Communication

Output signal

(4 to 20) mA /RS485

Communication protocol

HART/ Modbus

Resolution

1.6μA

Fault signal

Constant current output; 20. 5mA22mA 3.9mA

Integral time

(0 to 36) s, adjustable

Blind area

the ends of the antenna

Max. distance measurement

10 meters  (Liquid type）

Accuracy

± 5mm

Enclosure

IP67

Ex-Grade

ExiaⅡC T6 Ga/ Exd ⅡC T6 Gb

Frequency

26GHz

Communication interface

HART communication protocol

Measurement interval

about 1 second (depending on the parameter settings)

Display resolution

1 mm

Storage & transportation

-40 to100 ℃

Process Temperature

(40 to 130)℃ (Depend on the antenna part)

Pressure

Max. 4MPa

Seismic

Mechanical vibration l0m/s², (10 to 150) Hz
